Voliro T

The Voliro T is a unique non-destructive testing (NDT) drone with omnidirectional flight capabilities and tiltable rotors, enabling precise and stable inspections in complex industrial environments.

Type d'équipement : Drone

Avantages

Multi-directional aerial inspection drone with unique tilting capabilities
Used for non-destructive testing and inspection of hard-to-reach areas

Réservoirs de stockage
Silos
Récipients sous pression
Pipelines
Ponts
Wing Turbines
Cooling Systems
Distillation Columns
Ponts
Bâtiments
Éoliennes

Fabrication
Pétrole et gaz
Usines chimiques
Nucléaire
L'infrastructure
Énergie et services publics

A vendre

Demande de devis

Voliro T Non-Destructive Testing (NDT) Inspection Drone

The Voliro T drone’s unprecedented autonomy, omnidirectional functionality, and advanced physical interaction capabilities make it a revolutionary tool for performing ultrasonic non-destructive testing in hard-to-reach environments.

The Voliro T drone includes an NDT payload bundle featuring an electromagnetic acoustic transducer (EMAT), ultrasonic transducer, and a dry film thickness sensor for precise wall thickness measurements and surface corrosion detection.

Physical Performance

Use a maximum force of 30N and apply various Nm of torque to structures. Engage in physical interaction with objects.

Flexibilité

Experience unparalleled mobility with the Voliro T’s ability to tilt up to +-90°, enabling interaction in any orientation.

Stability

Implementing thrust-vectoring and 6DoF control ensures the necessary stability of teh Voliro T for dependable interaction even in challenging conditions.

L'autonomie

With the its semi-autonomous flight modes and advanced pilot assistance, the Voliro T offers a safe and user-friendly flying experience, even in GPS-denied environments, allowing for close proximity flights near structures.

Workflow

Designed to communicate with humans and machines, the Voliro T is equipped with open interfaces that enable seamless integration.

Modular Payloads

The Voliro T supports a range of custom payloads weighing up to 1kg and effective solutions for your challenges.

Additionally, the Voliro T is equipped with integrated sensors, including two 4k cameras and a depth camera.

Voliro T Easy Portability & Hassle-Free Transportation

Experience convenience and effortless portability with the Voliro T drone. Not only does the Voliro T come with a rugged, waterproof, crushproof transportation case, payload box, and accessories box, but the batteries are airline approved in accordance with the IATA TABLE 2.3.A, allowing you to pack them in your carry-on luggage conveniently for drone inspections.

Voliro T NDT Payload Bundles

EMAT (Electromagnetic Acoustic Transducer)

The EMAT is Ideal for corroded and dirty surfaces, this sensor has a maximal lift-off of 4mm. It complies with ASTM E1816-18 standards and has a range of 2-150mm with an accuracy of 0.04mm.

UT (Ultrasonic Transducer)

The ultrasonic transducer is compliant with EN 12668-1 and ISO 16831:2012.

This sensor offers echo-to-echo and pulsed echo test modes with live A-Scan. It has a thickness range of 4-150mm and a resolution of 0.02us (or 0.06mm at 5900m/s).

DFT (Dry Film Thickness)

The DFT sensor measures the thickness of protective coatings. It uses magnetic induction and eddy current measurement modes, with a range of 0 to 1500um (or 700um).

Spécifications techniques

Drone Type / Configuration	Multirotor / Omnidirectional Tri-Copter
Weight Batteries Included	3.7 kg
Max Takeoff Weight	6.0 kg
Max Payload Weight	1,0 kg
Dimensions (LxBxH)	78 x 78 x 34 cm without rotors, bumpers, and payload) 118 x 109 x 34 cm rotor tip to payload tip
Système de caméras	4K 12MP Inspector Camera (Horizontal FoV 80°) 4K 12MP Pilot Camera (Horizontal FoV 140°) Frame rate: 30/60fps best GSD: 0.16mm/px Video Formats: H.265(.mp4) File Storage: microSD, 256GB
Downlink	Live Video Stream Inspector Camera: HD 30fps Live Video Stream Pilot Camera: HD 30fps Live Payload Data Stream
Power LEDs	max. 17'000 lumen adjustable through Remote Control
Sensing System	Depth Camera (VGA) 6 x LiDAR distance sensor 6 x Vision-based velocity sensor RTK GPS

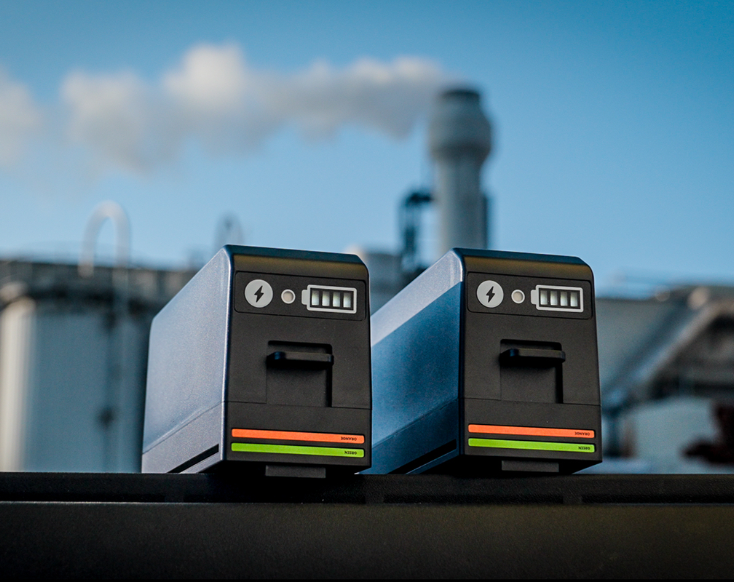

Type de batterie	LiPo (Hardcase, UN3481)
Battery Configuration	2 x 6S batteries in parallel
L'énergie	99Wh
Capacity	2 x 4500 mAh
Poids	1.3 kg per pair of batteries
Charging Cutoff Voltage	25.2 V
Min Voltage	21.6 V no load
Recommended Storage Voltage	22.2 - 22.8 V
Recommended Charging Current	< 9 A or 1C
Température de charge	10 - 30°C
Temps de charge	< 90 min
Batterie intelligente	No, batteries must be treated and cared for accordingly
Transportation	Batteries airline approved according to IATA TABLE 2.3.A batteries have to be carried within carry-on baggage
Charge Type	Dual AC/DC LiPo charger with balancing function
Charger Input Voltage AC	110 - 120V AC / 220 - 240 V AC (manual switch), 50 / 60Hz 9 - 32 V DC
Peak Output Power	600 W

Flight Time	10 - 14 min. mission and payload dependent
Modes de vol	Manual attitude is fully stabilized Altitude Position Interaction Assistant
Emergency Flight Modes	Intelligent auto-descent / position-hold on signal lost
Navigation Assistance	Outdoor GPS based: position, velocity, altitude Indoor GPS denied: height, velocity, altitude
Interaction Accuracy	± 2 cm normal environment conditions
Max Horizontal Speed	3 m/s in position flight mode 15 m/s in altitude and manual flight mode
Max Ascent / Descent Speed	3 m/s in position and altitude flight mode

Pilot Tablet Included	Samsung Galaxy Tab S6 Lite
Tablet Charger	Data Link, 12v
Tablet Battery	7040 mAh
Inspector Tablet Included	Same as Pilot Tablet
Remote Controller Mode	Mode 2 (Throttle and yaw on left stick)
Gimbal	Hall sensor M7 gimbal pinching thumbs compatible
Remote Controller Battery	3600 mAh
Remote Controller Charger	Input 110 - 24v AC, Output 12.8v DC

GPS Antenna	Integrated active antenna
Tripod	Rollei Compact Traveler Star S1, 38.5 - 125cm
Batterie	3000 mAh
Chargeur	Input 110 - 240v AC, Output 12.8v DC
