The Tinker & Rasor HD-AC is a high-voltage holiday detector designed for continuous operation in fixed inspection environments.
By operating from a continuous AC power source, the HD-AC supports repetitive coating inspection workflows without the need for battery charging or replacement.
Type d'équipement : Détecteur de vacances
Demande de devis

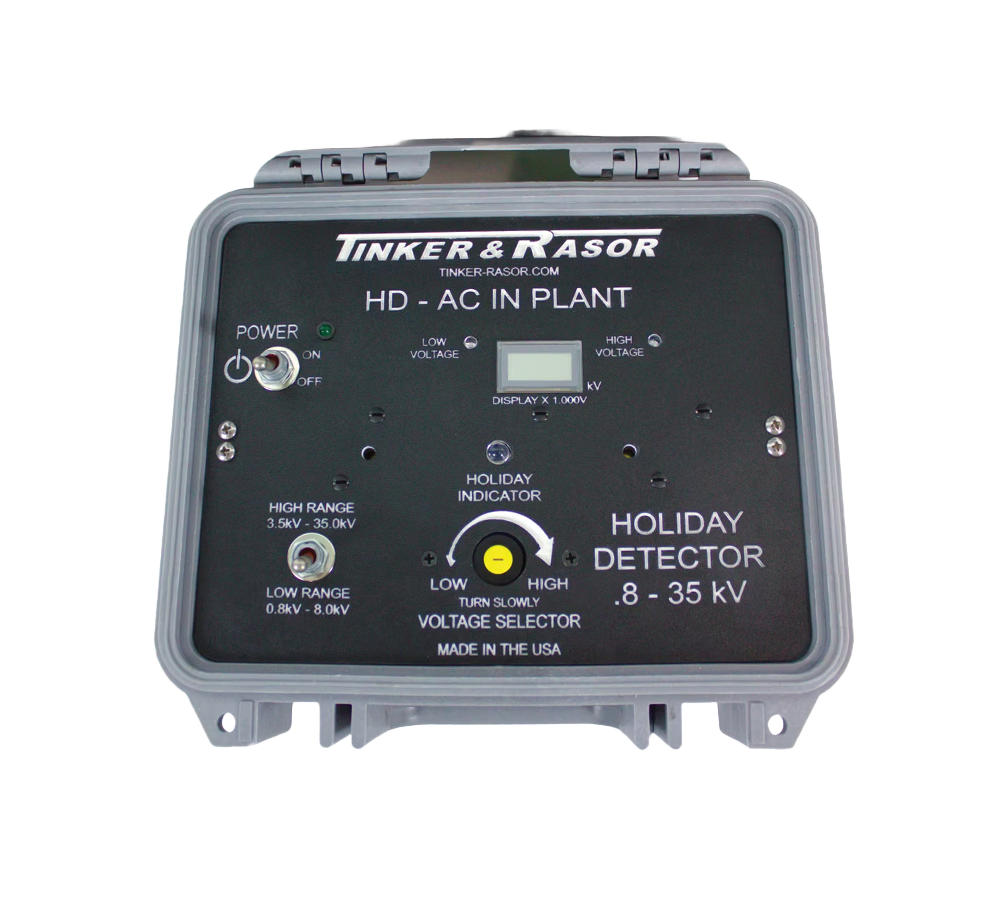

The Tinker & Rasor HD-AC is an AC-powered high-voltage holiday detector designed for inspecting protective coatings in manufacturing facilities, coating shops, fabrication environments, and other fixed inspection locations.
Powered by either 110V or 220V AC, the system eliminates the need for rechargeable batteries and provides a practical solution for coating inspection programs that perform routine testing throughout the workday.
The HD-AC features adjustable high-voltage output, a digital voltage display, audible holiday indication, and high/low voltage selection. Inspectors can adjust output voltage to match coating thickness requirements while performing coating quality assurance inspections on conductive substrates.
The HD-AC is commonly used in coating facilities, fabrication shops, manufacturing plants, and other environments where protective coatings are inspected as part of a repeatable quality assurance process. Its continuous AC-powered operation makes it well suited for organizations that perform high volumes of coating inspections on a regular basis.
Typical applications include inspection of pipelines, tanks, vessels, structural steel, and fabricated components before they’re placed into service. The HD-AC is often selected when inspectors need the capabilities of a high-voltage holiday detector without relying on battery-powered operation.
Tinker & Rasor HD-AC Technical Specifications
| Modèle | HD-AC Holiday Detector |
| Detector Type | AC-powered high-voltage holiday detector |
| Applications | In-plant coating inspection, production inspection, fabrication facilities, coating shops, and manufacturing environments |
| Affichage | Integrated digital voltmeter |
| Détection des vacances | Audible and visual holiday indicators |
| Remote Indicator Connection | Audible and visual external indicator connection |
| Contrôles | Adjustable voltage controls with High/Low selector |
| Conception | Fixed-position in-plant inspection system |
| Source d'énergie | 110V / 220V AC power supply |
| Fonctionnement | Continuous AC-powered inspection |
| Enclosure | Rugged locking Pelican case |
| Environnement | 0°C to 50°C / 32°F to 122°F |
| Inspection Method | High-voltage holiday detection |
| Output Type | Pulse DC |
| Voltage Range (Low) | 3,500V–35,000V |
| Voltage Range (High) | 3,500V–35,000V |
| Voltage Resolution | 100V |
| Capacité d'inspection | Non-conductive coatings on conductive substrates |
| Surface Conditions | Damp or dry surfaces |
