The Olympus 38DL Plus offers precision ultrasonic thickness measurements with multiple data storage options and advanced algorithms for accurate thickness gauging in diverse applications.
Equipment Type: Ultrasonic Thickness Gauge
Request a Quote
The Olympus 38DL Plus is a rugged and reliable solution for almost any ultrasonic thickness application. New innovations make this handheld thickness gauge is a powerful, but easy-to-use instrument that meets the demanding challenges of your production needs.
Whether you work in hot or cold climates, wet or dusty conditions, the Olympus 38DL Plus is designed to tolerate the shocks and drops during inspection. This ultrasonic thickness gauge is built tough, with a sealed case and protective rubber boot to withstand the rigors faced in the field.
Versatility is built-in with the ability to make very precise measurements on a wide range of surfaces, including very thick and multi-layer materials. The 38DL Plus can measure a variety of applications, including pipes, tanks, pressure vessels, and other structures affected by corrosion or erosion.
The 38DL Plus ultrasonic thickness gauge is also compatible with a full line of dual and single element transducers, even allowing accurate measurement of materials such as plastics, composites, metals, glass and ceramics.
The Olympus 38DL Plus has a compact design that is lightweight, and also includes an ergonomic keyboard, designed for either left or right hand operation. The color display is easily readable, whether conditions are in bright sunlight or complete darkness. With a host of input and output options, users can easily collect and transfer thickness readings and waveform data.
The included GageView application will help manage datasets easily while providing options for editing data and creating reports. The Olympus 38DL Plus ultrasonic thickness gauge allows for simple operation and is a choice option for a more accurate and efficient NDT inspection.

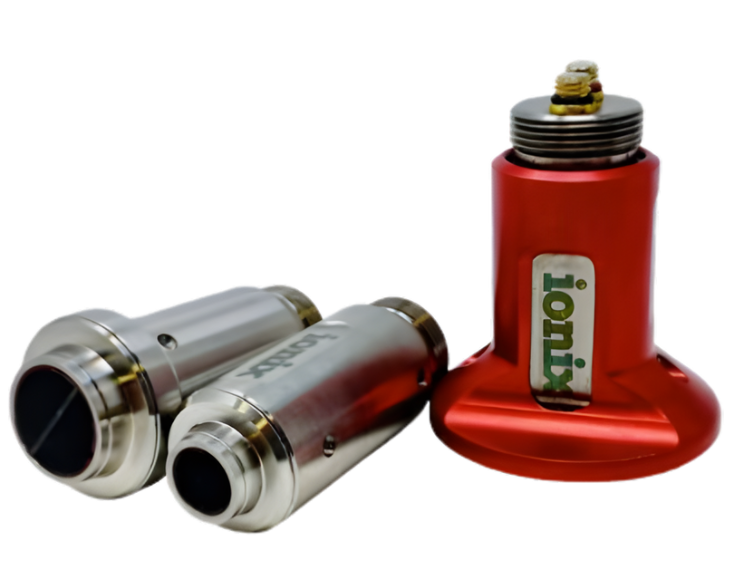

Now available with select Olympus 38DL rentals, the HotSense™ ultrasonic probes let you safely measure wall thickness on high-temperature assets—without shutting down equipment.
Built on the advanced Ionix HPZ piezoceramic platform, these dual element transducers deliver reliable, repeatable results in extreme environments up to 550 °C (1,022 °F)—no cooling required below 350 °C.
Their rugged stainless steel design and broad compatibility with standard UT gauges (including Evident models) make them ideal for on-stream corrosion and erosion monitoring.
Olympus 38DL Plus Technical Specifications
| Thickness Range | 0.08 mm (0.003 in.) to 635 mm (25 in.) depending on material and transducer selection |
| Resolution | Standard: 0.01 mm (0.001 in.) for all transducers |
| High-Resolution Option | 0.001 mm (0.0001 in.) with single element transducers |
| Frequency Range | 2.25 MHz to 30 MHz |
| High Penetration Software | Optional software for attenuating materials like fiberglass, rubber, and thick casting |
| Thickness, Velocity, and Time-of-Flight Measurements | Supports all three measurement types |
| Transducer Compatibility | Dual and single element transducers |
| Corrosion Thickness Gauging | Compatible with dual element transducers for corrosion measurements |
| THRU-COAT® Meausrements | Echo-to-Echo and Thru-Coat® measurements on painted/coated surfaces |
| Internal Oxide/Scale Software | Optional software for oxide/scale thickness measurements |
| Multilayer Software | Optional software for measuring up to four layers simultaneously |
| Differential mode | Measures the difference between the actual thickness and a preset value |
| Reduction Rate Mode | Measures the percentage reduction in thickness |
| Time-Based B-Scan Mode | Displays cross-sectional views of thickness, supporting 10,000 reviewable readings per scan |
| V-Path Builder | Custom V-path compensation for improved accuracy |
| High Dynamic Gain Technology | Olympus High Dynamic Gain technology with digital filters for enhanced signal clarity |
| Digital Filters | Integrated digital filters for enhanced signal-to-noise ratio |
| Review Capacity | Time-based B-scan with 10,000 reviewable readings per scan |
| Surface Temperature Range | -55°C to +550°C / -67°F to +1,022°F |
| Storage Temperature | -55°C to +80°C / -67°F to 176°F (Store dry and in clean condition) |
| Connector Type | Dual UNF 10/32 Microdot |
| Wear Allowance | 1.5mm / 0.06In |
| Ruggedisation | Weatherproof Stainless steel construction |
| Ex certification | Ex options available |
