OrphieCam 3000

The OrphieCam 3000 is a deep-sea inspection camera designed to deliver real-time color video at depths down to 3,000 meters. Its real-time image processing improves visibility in challenging underwater conditions, helping inspection teams obtain clearer views of submerged assets.

With about 200 ms latency and a maximum bandwidth of 12 Mbit/s, the camera supports live video transmission without excessive data demands.

Equipment Type: Deep-Sea Inspection Camera

Benefits of the OrphieCam 3000

Deep-sea exploration
Underwater visual inspections

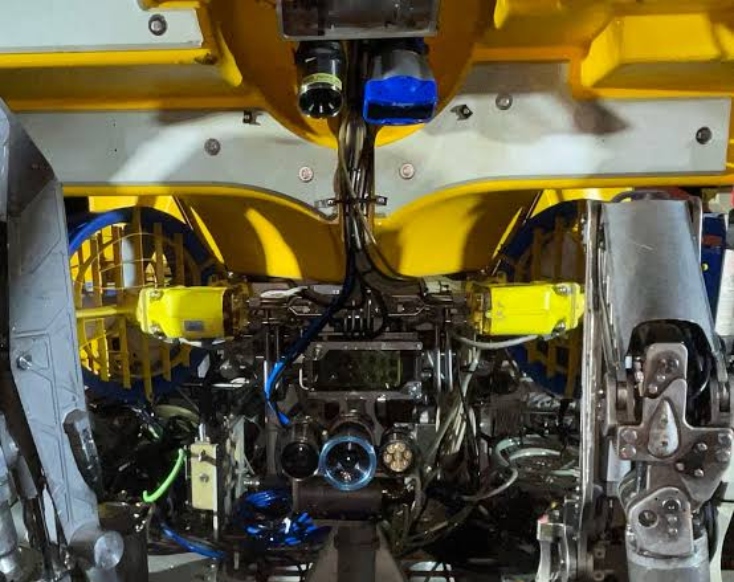

ROV navigation
Ship hull inspections
Offshore wind turbine inspections
Subsea infrastructure inspections
Submarine cable inspections
Marine construction support

Ship hulls
Offshore wind foundations
Offshore platforms
Subsea pipelines and cables
Ports and harbors
Bridges
Waterfront structures

Offshore wind
Oil and gas
Marine construction
Ports and shipping
Infrastructure inspection

For Rent

Request a Quote

Real-Time Visibility for Deep-Sea Inspection Work

Deep-sea inspections depend on a clear, quick view of assets that may be difficult to access and surrounded by low-visibility water. Limited visibility can make it harder for operators to navigate, monitor conditions, and identify areas that require closer attention.

The OrphieCam 3000 combines deepwater capabilities with real-time image processing to support visual inspections at depths down to 3,000 meters. It provides a live color video stream for ROV navigation, infrastructure monitoring, and other deep-sea applications.

Inspect at Depths Down to 3,000 Meters

The OrphieCam 3000 is rated for operation at depths down to 3,000 meters, supporting visual inspections of deepwater infrastructure, submarine cables, offshore assets, and other submerged structures.

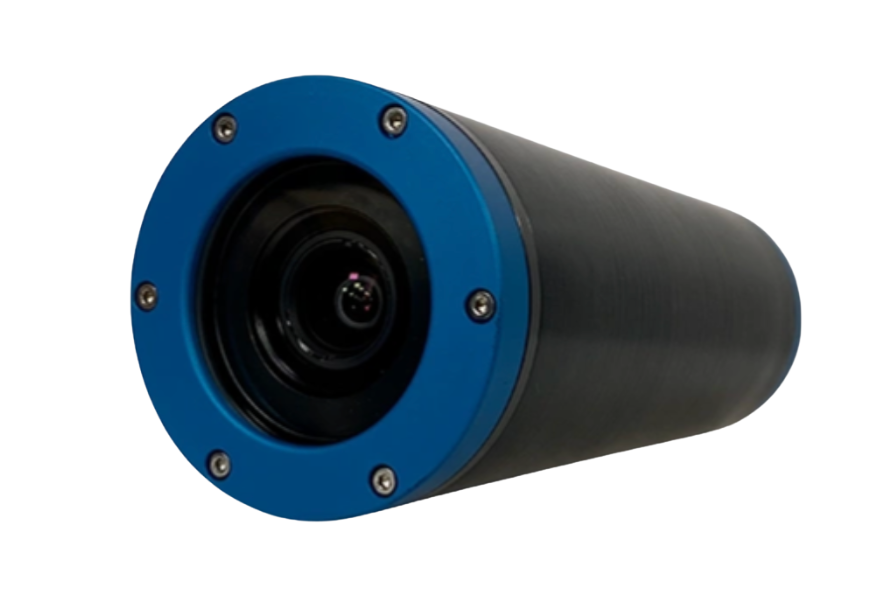

Its titanium housing is designed for deep-sea deployment, while a tempered Borofloat lens protects the camera’s optical components.

Extend Visibility in Low-Visibility Water

Real-time image processing helps the OrphieCam 3000 deliver clearer views in underwater environments where suspended material, low light, or other conditions can limit conventional camera visibility. This deepwater visualization can give operators useful visual data for navigation, monitoring, and inspection work.

The camera has a 67-degree diagonal field of view in water, with a 59-degree horizontal and 48-degree vertical view, helping teams maintain awareness of the asset and its surroundings during inspections.

Stream Real-Time Video with Low Latency and Bandwidth

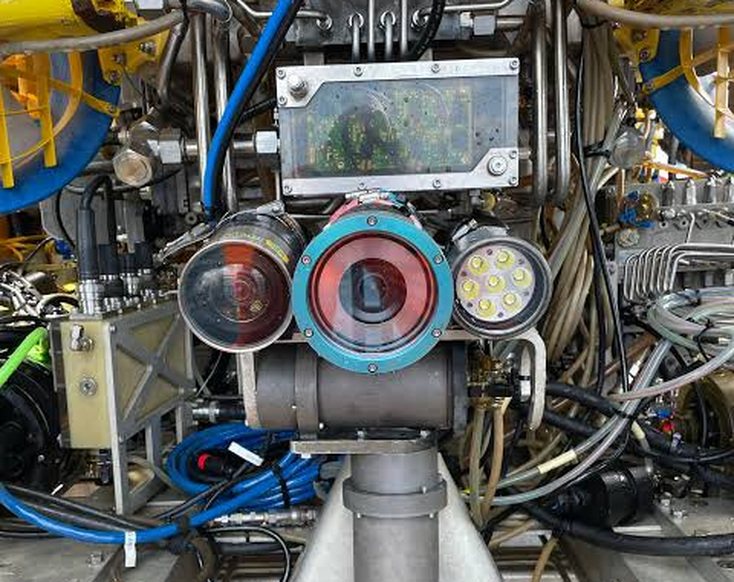

The OrphieCam 3000 delivers live video with approximately 200 ms of latency, giving operators quick visual data during ROV navigation, asset monitoring, and underwater inspection work.

Video is transmitted over 100BASE-T Ethernet, with a maximum bandwidth of 12 Mbit/s. This combination supports real-time video delivery while limiting the camera’s bandwidth requirements within a subsea inspection system.

Configure Camera and Video Settings with Orpheo

Orpheo software provides a single interface for viewing and configuring Orphie cameras. Operators can adjust the OrphieCam 3000’s bitrate and stream size and manage its network settings according to the inspection system and video requirements.

Additional software functions include digital zoom, snapshots, and video recording. These tools allow teams to examine the live view more closely and retain visual records from inspection work.

OrphieCam 3000 Technical Specifications

Sensor	2/3-inch CMOS color sensor
Optical resolution	1224 × 1024
Frame rate	25 fps
Latency	Approximately 200 ms
Field of view in water	67° diagonal / 59° horizontal / 48° vertical

Depth rating	3,000 m / 9,842 ft
Housing material	Titanium
Dimensions without connector	275.5 mm long × 116 mm diameter
Weight in air	4.5 kg
Weight in water	2.5 kg
Operating temperature	0°C to 30°C

Input voltage	12–32 V
Maximum power:	13 W
Data transmission	Ethernet 100BASE-T, 100 Mbit/s
Maximum bandwidth	12 Mbit/s
Connectors	Glenair G55 Titanium and Seanet
