Cygnus FMD System for ROV

Cygnus FMD System for ROV

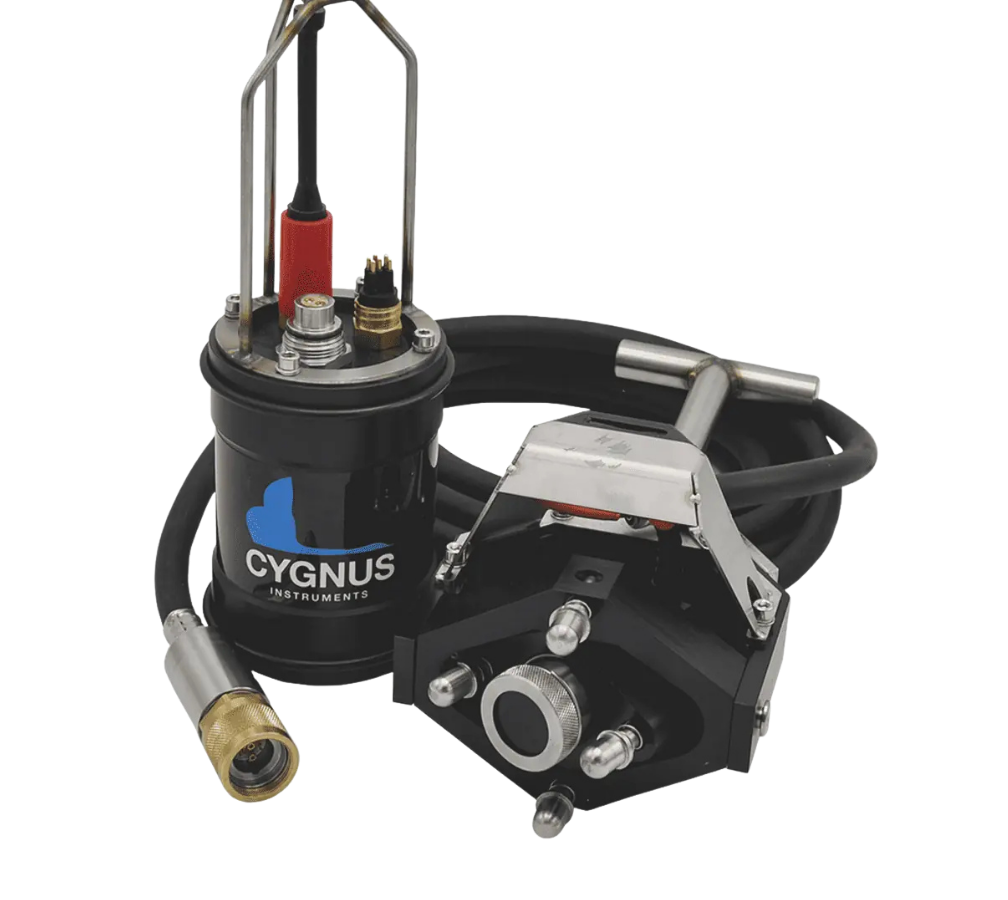

The Cygnus FMD System for ROV is a subsea flooded member detection solution designed to quickly determine whether offshore structural members are dry or water-filled.

Using advanced ultrasonic inspection technology, the system delivers clear, color-coded results to surface operators, allowing for fast and confident decision-making during underwater inspections.

With built-in verification tools and intelligent signal processing, it provides reliable data while minimizing the risk of false readings.

Engineered for both ROV and diver deployment, the Cygnus FMD System is ideal for inspecting offshore platforms, subsea pipelines, marine infrastructure, and civil engineering structures.

Its compact design allows access to hard-to-reach areas, while integrated reporting software simplifies documentation and report generation.

For subsea asset integrity assessments, the Cygnus FMD System offers a dependable, cost-effective solution for flooded member detection.

Equipment Type: UT FMD

Benefits of the Cygnus FMD System for ROV

Offshore platform structural inspections
Jacket and brace integrity assessments
Underwater pipeline inspections
Subsea pipeline support structure evaluations
Flooded member inspections (FMI)
Subsea asset integrity management programs
Inspection, repair, and maintenance (IRM) campaigns
Pre-decommissioning structural assessments
Post-storm damage inspections
Marine terminal and jetty inspections
Submerged bridge support inspections
Harbor and port infrastructure assessments
Offshore wind foundation inspections
FPSO structural inspections
Caisson and monopile inspections
Diving-based subsea inspection operations
ROV-based subsea inspection missions
Baseline condition surveys for offshore assets
Life-extension assessment programs
Regulatory compliance inspections

Fixed offshore platforms
Offshore drilling rigs
Subsea pipelines
Pipeline risers
Jacket structures
K nodes
Caissons
Monopiles
Offshore wind turbine foundations
FPSO hull structures
Subsea manifolds
Subsea templates
Conductors
Wellhead structures
Mooring structures
Jetties
Piers
Harbors
Bridge piles
Submerged structural supports
Marine terminals
Loading arms support structures
Offshore substations
Sea walls
Dock structures

Offshore energy
Oil and gas
Offshore wind
Marine construction
Commercial diving
Subsea inspection services
Asset integrity management
Inspection, repair, and maintenance
Maritime transportation
Port operations
Civil engineering
Infrastructure development
Subsea engineering
Energy infrastructure
Utilities
Decommissioning services
Environmental engineering
Defense and naval operations

Buy or Rent

Talk to Sales

Cygnus FMD System for ROV for Accurate Flooded Member Detection in Subsea Structures

When you’re responsible for subsea structures, uncertainty is expensive. A flooded structural member isn’t something you can see from the outside, but it can quietly weaken the integrity of your asset over time.

Sending divers down for manual checks takes time. ROV operations are costly. And making assumptions about whether a member is dry or water-filled simply isn’t acceptable when safety, compliance, and uptime are on the line.

The Cygnus FMD System removes the guesswork from subsea inspections. It provides a clear answer, dry or flooded, so your team can make fast, confident decisions offshore.

There’s no complicated data to sort through and no unnecessary repeat inspections. Just reliable results that help you reduce risk, control costs, and protect critical infrastructure underwater.

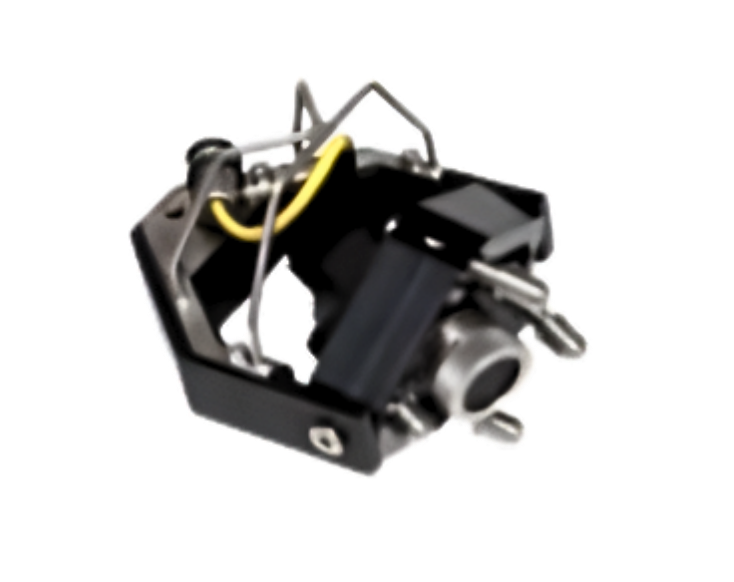

Self-Aligning Probe and Fail-Safe Contact Sensor for Reliable Subsea Flooded Member Detection

The Cygnus FMD System is engineered for dependable subsea inspections with its intelligent self-aligning transducer handler and fail-safe contact sensor.

The self-aligning probe automatically adjusts to the surface of the structural member, eliminating the struggle of awkward ROV positioning and ensuring secure, consistent contact, even in hard-to-reach areas like K nodes.

This design significantly reduces maneuvering time and helps operators maintain stable measurements in challenging underwater environments.

To further protect inspection accuracy, the built-in fail-safe contact sensor prevents a reading from being taken unless the probe is properly aligned and physically touching the structure.

If contact is lost during testing, the surface software immediately alerts the operator, preventing false readings and wasted dive or ROV time.

Together, these features increase Probability of Detection (PoD), reduce costly rework, and give subsea inspection teams greater confidence in every flooded member assessment.

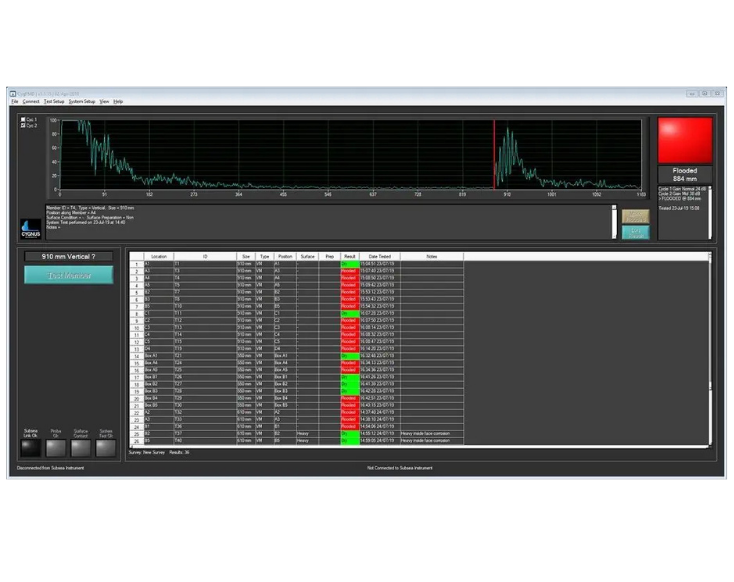

Clear DRY/FLOODED Interface with Automated A-Scan Reporting for Subsea Inspections

The Cygnus FMD System simplifies complex subsea ultrasonic testing with its clear DRY/FLOODED visual interface and integrated A-scan display with automated reporting.

Instead of forcing operators to interpret complicated NDT waveforms, the software translates inspection data into an intuitive color-coded result: DRY (green) or FLOODED (red).

This dramatically reduces ambiguity, allows for faster offshore decision-making, and makes the system practical for owner-operators without the need to hire specialized external analysts.

For validation and documentation, the system simultaneously displays a verifiable A-scan and automatically logs every test performed. The FMD Reporting Software stores raw data for offline analysis and enables instant generation of professional PDF or Excel reports.

This streamlines compliance documentation, reduces administrative workload, and ensures every flooded member inspection is backed by traceable, reviewable ultrasonic data.

Cygnus FMD System for ROV with Advanced Detection Algorithm and Rugged Subsea Construction

The Cygnus FMD System is powered by an advanced data processing algorithm designed to maximize inspection accuracy in demanding subsea environments.

Using advanced peak detection, low-noise and low-distortion data acquisition, and specialized signal processing, the system delivers a high Probability of Detection (PoD) while actively reducing the risk of false readings. This gives operators greater confidence in flooded member inspections and helps prevent costly misjudgments that could lead to unnecessary repairs or overlooked structural risks.

Supporting this performance is a ruggedized acetal construction built specifically for harsh underwater conditions. The subsea electronics unit and transducer handler are manufactured from high-grade, lightweight acetal to withstand pressure, impact, and long-term exposure to marine environments.

Backed by a three-year warranty, this durable design ensures long service life and dependable operation, reducing downtime and protecting your investment in subsea inspection equipment.

Flexible ROV or Diver Deployment with Pre Deployment System Testing for Confident Subsea Inspections

The Cygnus FMD System offers compact, versatile deployment by ROV or diver, giving subsea inspection teams the flexibility to adapt to virtually any offshore environment. Its compact probe design allows access to confined and complex areas such as K nodes that traditional inspection tools often cannot reach.

This dual-deployment capability improves operational efficiency, expands accessibility, and supports a wide range of subsea inspection, repair, and maintenance programs without being limited to a single method of deployment.

To further protect your time and budget, the system includes a dedicated pre-deployment system test tank and integrated software test function that verifies full functionality before the equipment enters the water. This prevents costly delays associated with discovering issues mid-operation and ensures the system is fully operational before committing to expensive dive or ROV time.

If you are looking to reduce risk, improve inspection reliability, and gain greater confidence in flooded member detection, the Cygnus FMD System is ready to support your next subsea project.

Cygnus FMD System for ROV Technical Specifications

Transducer	0.5 MHz high power piezo composite transducer – single element
Measuring Range	200 – 2000 mm member diameter
Resolution	1 mm

Diver Communications PSU	110-240 AC 50/60 Hz @ 1A (max)
ROV Power Supply	12 to 24 volt D.C @ 60mA

Digital	RS232 & RS485
Baud Rate	115,200
Date Capture	On demand 3 shot and varying gain levels
Diver Data Link	RS485 half – duplex

Acetal Electronics Body	0.9 kg (95 x 115 mm)
Acetal Transducer Handler	2.5 kg (140 x 170 x 130 mm)
120m Umbilical Cable	23 kg (340 x 450 x 555 mm)
350m Umbilical Cable	87 kg (450 x 600 x 930 mm)
50m Deck Cable	13 kg (290 x 380 x 490 mm)
Depth Rating	300 msw
Operation Temperature	0°C to +75°C
Storage Temperature	-40°C to 55°C
