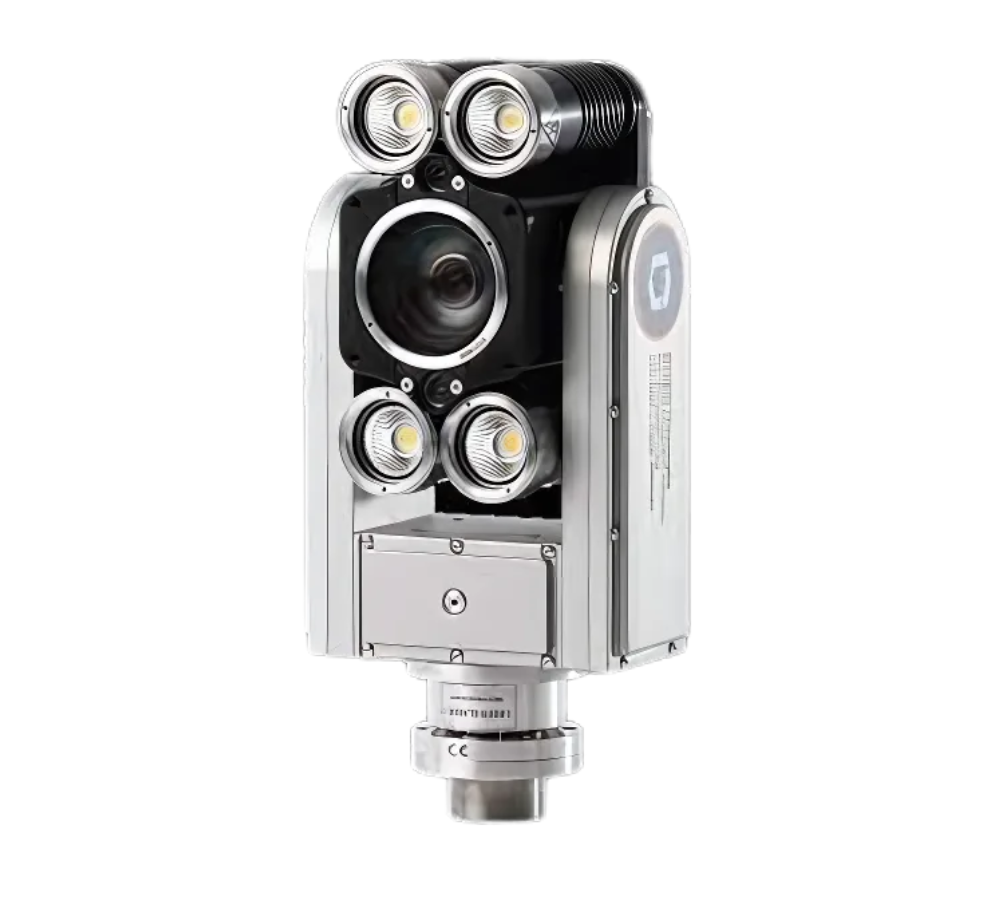

The Waygate Ca-Zoom HD30, also known as the PTZ HD30, is the powerhouse of the Ca-Zoom HD inspection system, delivering unmatched clarity and reach for industrial inspections. Equipped with a Full HD 1920×1080 sensor, 30x optical zoom, and powerful 2980-lumen LED illumination, it allows operators to capture both wide overviews and fine details with precision, even in challenging lighting conditions.
Built for larger vessels, tanks, and industrial spaces where long-range visibility is essential, the HD30 combines advanced imaging with rugged durability. Its high-powered optics and extreme environmental resilience make it a trusted choice for remote visual inspections in oil and gas, mining, pharmaceutical manufacturing, and nuclear power.
Equipment Type: Tank Inspection System
Demande de devis
The Waygate Ca-Zoom HD30 is a high-performance PTZ inspection camera head built to handle the challenges of larger vessels, tanks, and complex industrial assets. With advanced optics, a wide dynamic range, and a rugged, field-ready design, the HD30 delivers sharp, reliable visuals in environments where accuracy is critical.
By combining long-range clarity with powerful illumination, it gives inspectors the confidence to evaluate critical infrastructure efficiently and safely across industries such as oil and gas, mining, pharmaceutical manufacturing, and nuclear power.

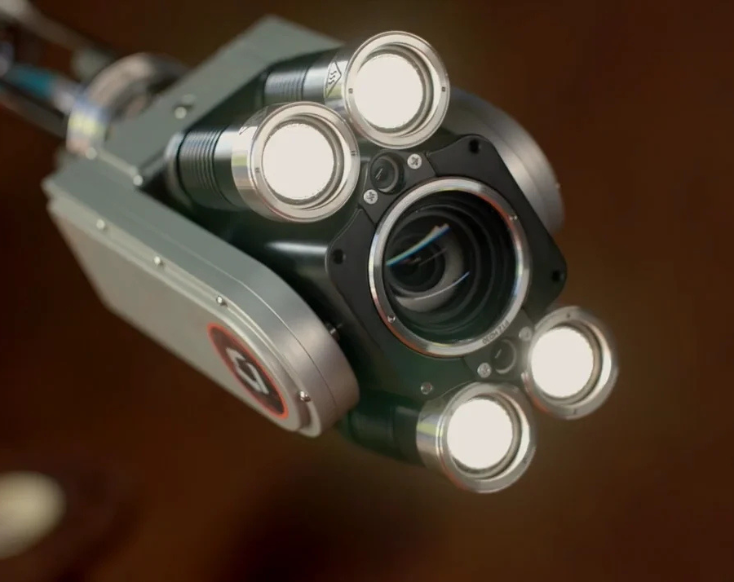

The Waygate Ca-Zoom HD30 sets the standard for inspection clarity with its Full HD 1920×1080 resolution, 30x optical zoom, and wide dynamic range (WDR). This combination allows inspectors to capture crisp visuals across both brightly lit and shadowed areas without needing multiple exposures.
Think of it as having a high-powered telescope inside a tank — able to sweep across wide interiors and then zoom in on the smallest crack or defect with precision. With automatic focus and exposure adjustments, the HD30 ensures consistent, repeatable image capture in every scenario.

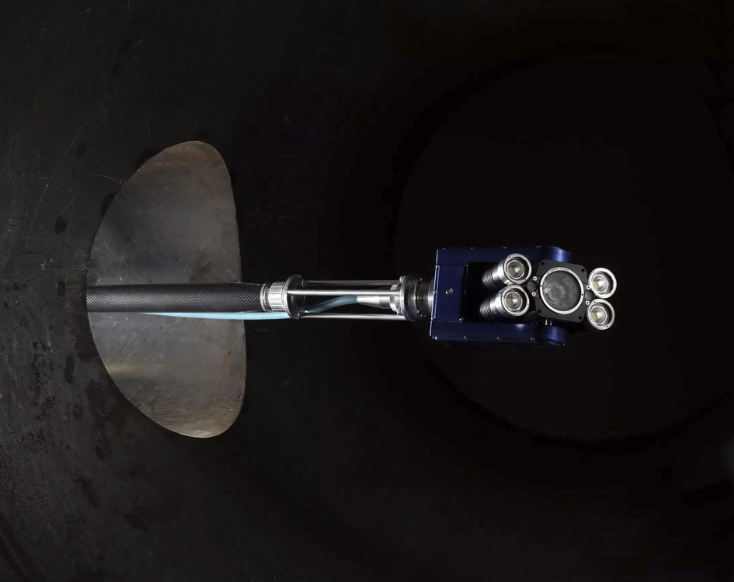

Engineered for complete coverage, the HD30 offers continuous 360° pan and an expansive 338° tilt, ensuring no angle is left unseen.
To complement this range of motion, it is equipped with four high-intensity LEDs delivering 2980 lumens.
Just like stadium floodlights revealing every corner of a field, the HD30’s independently controlled LED pairs illuminate dark vessels and large tanks with adjustable precision, reducing glare and highlighting surface details with ease.
Built from anodized aluminum and stainless steel, the HD30 is designed to withstand demanding inspection environments while delivering high accuracy.
It includes integrated parallel laser lines, enabling inspectors to size defects directly within the visual field, much like using built-in calipers on a digital microscope.
Compact yet durable, the 3.5 kg camera head is both robust and precise, ensuring reliable measurements in the toughest conditions.
The Waygate Ca-Zoom HD30 isn’t just powerful, it’s engineered for the extremes. With an IP68 rating, it operates underwater up to 50 meters when pressurized, and its radiation tolerance of up to 2,000 rad/h makes it dependable even in nuclear applications.
Despite its rugged design, the HD30 integrates seamlessly into the Waygate Ca-Zoom HD system and comes packaged in a portable 21 kg transport box for easy deployment. Rugged, reliable, and inspection-ready wherever you need it — contact MFE to learn more.
| Resolution, Image Sensor | Full HD (1920x1080), 1/2.8 CMOS, 2.38 MP |
| Zoom | 30x optical, 12x digital |
| Field of View (in air) | 63.7° wide-end - 2.3° tele-end |
| Longueur focale | 4.3 mm to 129 mm |
| Minimum Focus Distance | 10 mm (wide), 1200 mm (tele) |
| Sensibilité | 1.4 lx |
| Pan | Continuous 360° |
| Tilt | 338° (±169°) |
| Éclairage | 10 LEDs, total 1400 lumen Brightness: at 1m 234 lx, at 3m 28 lx |
| Contrôle de la lumière | Two LED pairs on-off + incremental control |
| Dimensions (LxLxH) | 246 mm x 117 mm x 113 mm (9.69” x 4.61” x 4.45”) |
| Minimum Opening Diameter | 130 mm (5.11”) |
| Température de fonctionnement | 0° C - 45° C (32° F - 113° F) |
| Poids | 3.5 kg (7.72 lbs) |
| Radiation Tolerance | Total dose (cumulative): 42,500 rad (425 Gy)
Radiation tolerant: 2,000 rad/h (20 Gy/h) |
| Protection contre les infiltrations | IP68, waterproof up to 50 m (when pressurized) |
| Cable Options | 10 m / 30 m / 70 m (33 ft / 100 ft / 230 ft) |
| La construction | Anodized aluminium + Stainless Steel |
| Laser | Integrated parallel laser lines for sizing |
| Puissance | External Power Adapter, 100-240V (47-63Hz), 150W |
| Dimensions (LxWxD) | 165 mm x 90 mm x 175 mm (6.49” x 3.54” x 6.89”) |
| Poids | 1.64 kg (3.61 lbs) |
| Intel Core i5-7300U, 8GB DDR3L SDRAM | External Power Adapter, 100-240V (47-63Hz), 150W |
| Capacité de stockage | SSD 256 GB (>6 hours video recording) |
| Écran | 1920 x 1200, Bright rugged touchscreen, 800 cd/sqm |
| Dimensions (LxWxD) | 400 x 200 x 95 mm (15.75” x 7.87” x 3.74”) |
| Poids | 2.02 kg (4.45 lbs) |
| Cable to Controller | 5 m (16.4 ft) - pendant power and communication |
| Protection contre les infiltrations | IP65 |
| Interfaces | 2x USB A, RJ45 Ethernet, 1 HDMI |
| Capacité de la batterie | 4080 mAh |
| Contrôles | Physical joysticks and buttons on each side for access of main functions, integrated active pen (stylus) |
| Hardshell Transport Box | 690 mm x 380 mm x 358 mm (27.13” x 14.96” x 14.09”), 21 kg (46.3 lbs)
Holds: PTZ HD30, PTZ HD10, 10m camera cable, controller, pendant with 5m cable, power adapter, CO2 pump and cartridges |
| Hardshell Backpack (optional) | 542 mm x 402 mm x 220 mm (21.33” x 15.82” x 8.66”), 12.5 kg (27.5 lbs)
Holds: Either PTZ HD30 or PTZ HD10, controller, pendant, power adapter, CO2 pump and cartridges, 10m camera cable strapped to outside |
| Deployment Poles | 6 ft and 3 ft threaded carbon fibre pole-segments, diameter 29 mm (1.14”) |
| Ball Joint Flange Mount | Tripod with ball-joint swivel for carbon fibre poles |
| Pressurization Kit | 2.5 bar pressurization pump with CO2 cartridges
(for underwater use of PTZ HD30 + PTZ HD10 camera) |
