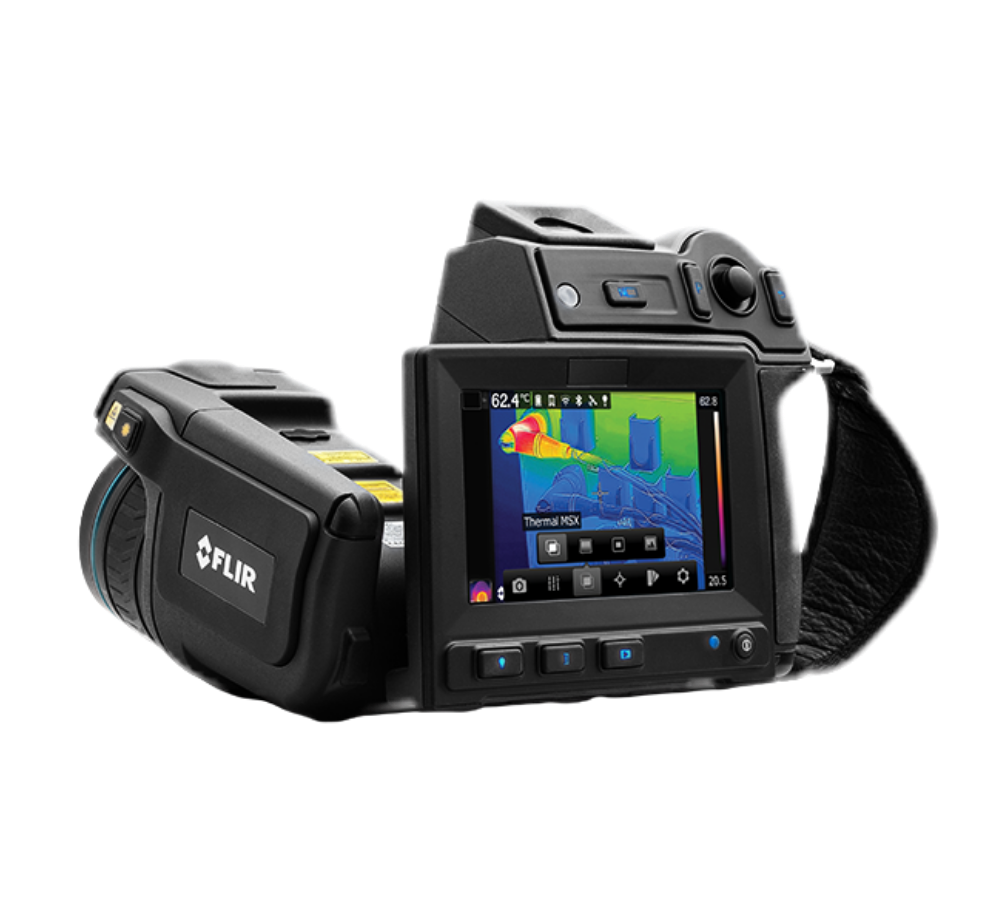

The FLIR T640 is a professional, fully radiometric thermal imaging camera designed to help you detect heat-related problems before they lead to failure. It captures detailed thermal images that store temperature data in every pixel, allowing you to analyze and measure temperatures even after the inspection is complete.
Ideal for electrical, mechanical, and industrial applications, the T640 makes it easier to identify developing issues, document findings, and support predictive maintenance programs with reliable thermal data.
Equipment Type: Thermal Imaging
Demande de devis
Overheating components rarely fail without warning—they heat up first. The FLIR T640 reveals those changes early, giving maintenance and inspection teams the data needed to protect equipment and maintain operational reliability.
The FLIR T640 features a 640 × 480 infrared detector that produces detailed thermal images for accurate inspection and analysis.
Every image is fully radiometric, meaning temperature data is stored in every pixel. This allows you to measure specific points and areas after the inspection, supporting thorough documentation and confident decision-making.
With thermal sensitivity below 30 mK, the camera can detect subtle temperature differences that may indicate early-stage faults, moisture intrusion, or developing component wear.

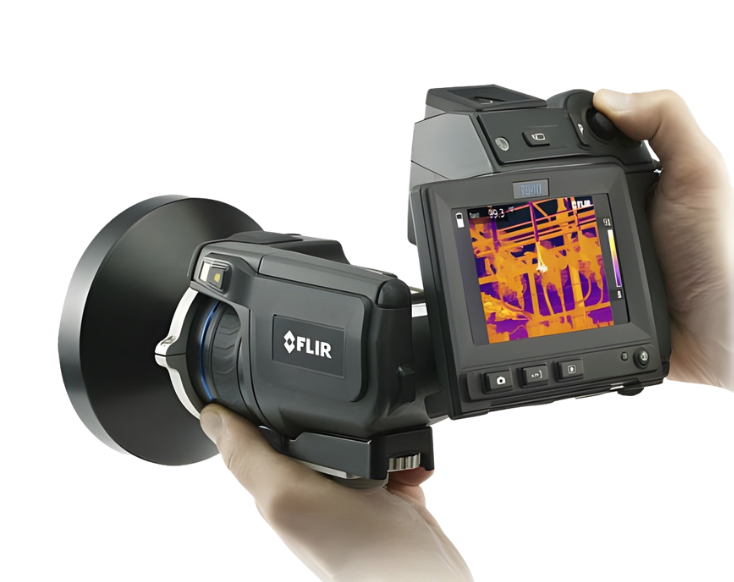

The T640’s rotating optical block allows the lens to tilt independently of the display, making it easier to inspect ceilings, floors, and tight spaces without awkward positioning. This ergonomic design reduces strain during long inspection routines.
A large 4.3” touchscreen provides intuitive control of settings and enables on-screen annotations, including text, sketches, and voice comments, helping you document findings clearly while still in the field.

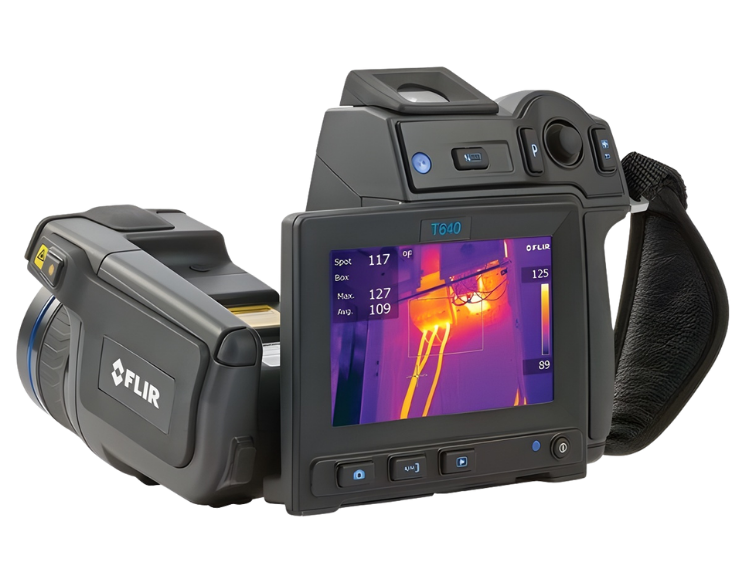

Equipped with multiple measurement tools, including up to 10 spot meters, 5 box areas, and Delta-T calculations, the T640 allows users to perform detailed analysis directly on the camera. This enables fast evaluation of temperature differences without needing to return to the office.
Its wide temperature range from -40°C to +2000°C (-40°F to +3632°F) supports a broad range of applications, from building diagnostics to high-temperature industrial processes.

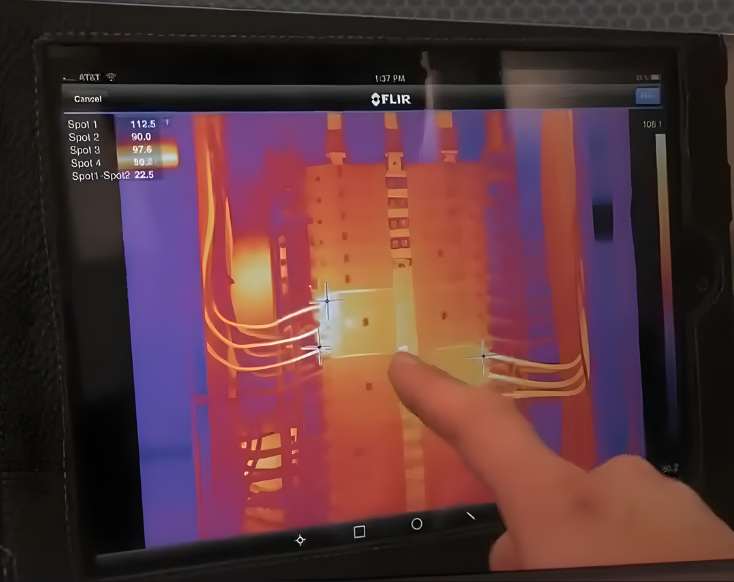

Built-in Wi-Fi allows the FLIR T640 to transfer images wirelessly to mobile devices or computers for quick sharing and reporting.
Bluetooth METERLiNK connectivity enables compatible moisture meters and clamp meters to embed measurement data directly into thermal images, reducing manual note-taking and minimizing reporting errors.
Radiometric video streaming via USB or Wi-Fi also allows for detailed frame-by-frame analysis when connected to a PC.
Get access to professional-grade, fully radiometric thermal imaging without the capital investment. Whether you need the FLIR T640 for a short-term inspection, a plant shutdown, troubleshooting support, or a longer project, our flexible rental options make it easy to get the equipment you need, when you need it.
With fast turnaround times, rigorously maintained equipment, and knowledgeable support from the team at MFE, you can move forward with confidence and focus on completing the job efficiently.
| Résolution IR | 640 x 480 pixels |
| Sensibilité thermique/NETD | <30 mK @ +30°C (+86°F) |
| Précision | ±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal. |
| Champ de vision | 15° × 11° |
| Affichage | Built-in touch screen, 4.3 in. wide screen LCD, 800 × 480 pixels |
| Storage Media | Removable memory SD card |
| Built-in Digital Camera | 5 Mpixels with LED light (photo as separate image) |
| Color Pallettes | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
| Detector Pitch | 17 µm |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| Zoom numérique | 1–8× continuous |
| f-number | 1.0 |
| Longueur focale | 41 mm (1.63 in.) |
| Minimum Focus Distance | 0.5 m (1.64 ft.) |
| Précision | ±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal. |
| Accuracy [Drift] in Screen-EST Mode | 0.5°C (0.9°F) accuracy at 37°C (98.6°F) with reference in room temperature |
| Area | 5 + 5 areas (boxes or circles) with max./min./average (in post-acquisition analysis) |
| Alarme couleur (Isotherme) | Above/below/interval |
| Emissivity Correction | Variable from 0.01 to 1.0 or selected from materials list |
| Plage de température de l'objet | –40°C to +150°C (–40°F to +302°F) +100°C to +650°C (+212°F to +1202°F) +300°C to +2000°C (+572°F to +3632°F) |
| Spot Meter | 10.0 |
| Plage de température | -40°F to 1202°F (-40°C to 650°C) |
| Affichage | Built-in touch screen, 4.3 in. wide screen LCD, 800 × 480 pixels |
| Génération de rapports | Instant Report (*.pdf file) in camera Separate PC software with extensive report generation |
| Texte | Add table. Select between predefined templates or create your own in FLIR Tools |
| Voix | 60 seconds (via Bluetooth) stored with the image |
| Formats de fichiers | Standard JPEG, measurement data included |
| File Formats - Visual | Standard JPEG, automatically associated with corresponding thermal image |
| Interface | USB-mini, USB-A, Bluetooth, Wi-Fi, Digital Video Output |
| SD Card | One card slot for removable SD memory cards |
| USB | USB-A: Connect external USB device USB Mini-B: Data transfer to and from PC / uncompressed colorized video |
| Battery Operating Time | >2.5 hrs |
| Type de batterie | Rechargeable Li ion battery |
| Charging System | In camera (AC adapter or 12 V from a vehicle) or 2-bay charger |
| Température de charge | 0°C to +45°C (+32°F to +113°F) |
| Temps de charge | 2.5 h to 90 % capacity, charging status indicated by LED's |
| External Power Operation | AC adapter 90–260 VAC, 50/60 Hz or 12 V from a vehicle (cable with standard plug, optional) |
